BorexStroke:?40 x 50mm
Max.Power Rating:?Up to 52HP
Working Pressure:?130Bar/1890psi
Max.Flow Rate:?169Lpm/44.6Gpm
Max.Input Rpm:?900r/min
Head Material:?Forged stainless steel 420
Overall Dimension:?58x40x28cm
Shipping Weight:?74kgs

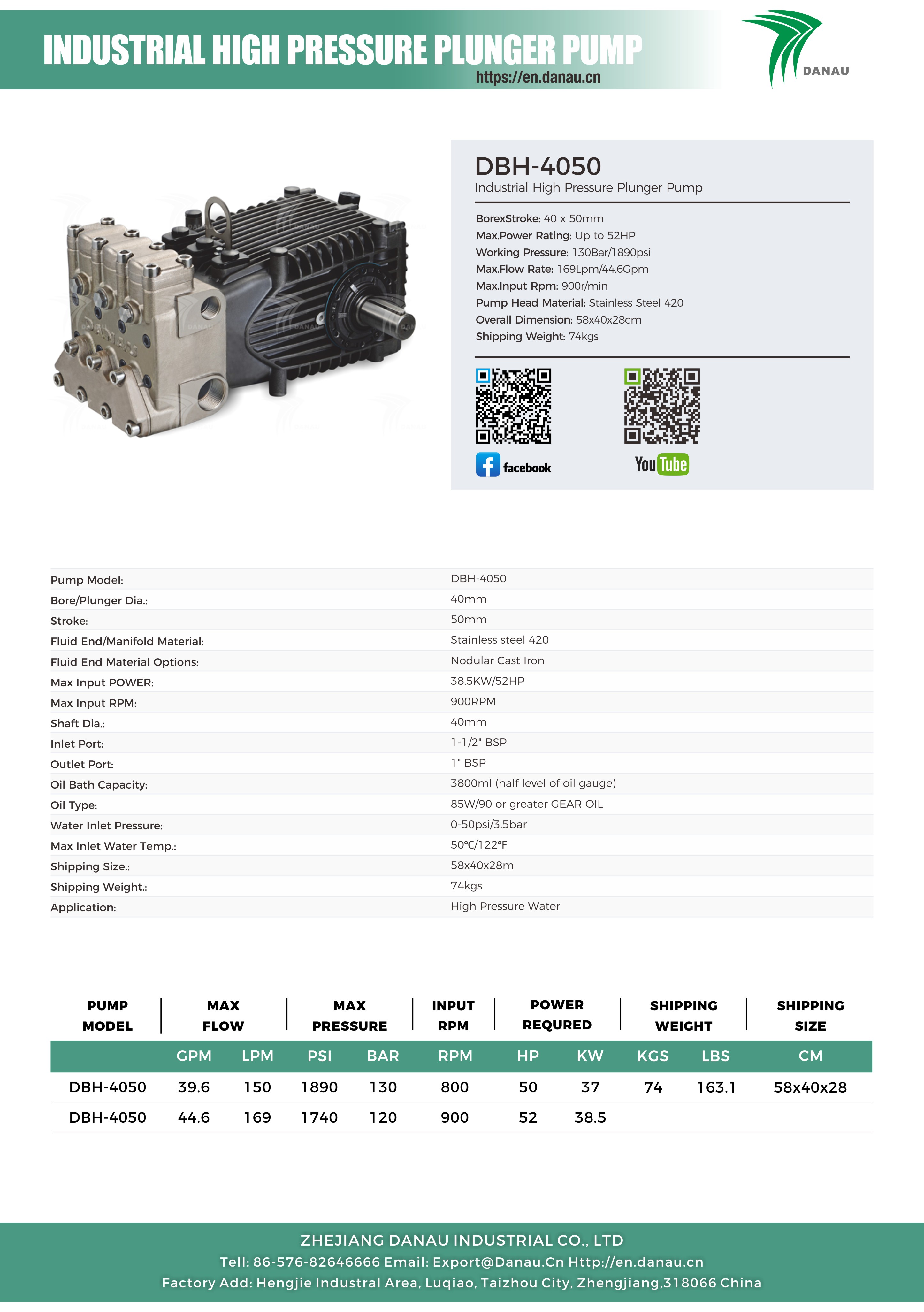

Pump Model: | DBH-4050 | |
Bore/Plunger Dia.: | 40mm | |
Stroke: | 50mm | |
Fluid End/Manifold Material: | Forged Stainless steel 420 | |
Fluid End Material Options: | Nodular Cast Iron,Stainless Steel 316L,Duplex 2205 | |
Max Input POWER: | 38.5KW/52HP | |
Max Input RPM: | 900RPM | |
Shaft Dia.: | 40mm | |
Inlet Port: | 1-1/2" BSP | |
Outlet Port: | 1" BSP | |
Oil Bath Capacity: | 3800ml (half level of oil gauge) | |
Oil Type: | 85W/90 or greater GEAR OIL | |
Water Inlet Pressure: | 0-50psi/3.5bar | |
Max Inlet Water Temp.: | 50℃/122℉ | |
Shipping Size.: | 58x40x28m | |
Shipping Weight.: | 74kgs | |
Application: | High Pressure Water | |
